Customized Paper Machine Clothing Canvas Dryer Fabric Stable Structure

Name: Customized Paper Machine Clothing Canvas Dryer Fabric Stable Structure
Brand: HUATAO
Price: 1 USD

Quality Customized Paper Machine Clothing Canvas Dryer Fabric Stable Structure wholesale

Brand Name : HUATAO

Model Number : HUATAO-D002

Certification : ISO9001:2008

Place of Origin : China

MOQ : 50 Square meter

Price : Price accept negotiation

Payment Terms : L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability : 10000 square meter per month

Delivery Time : 25 days

Packaging Details : Wooden box or poly bag

Material : Polyester

Color : Red or white

Seam type : Spiral joint / Spiral Pin Seam

Air Permeability : 100~700CFM

Thickness : 1.4mm ~ 2.0mm

Application : Paper Making

Contact Now

Customized Paper Machine Clothing Canvas Dryer Fabric Stable Structure

Dryer screen dries paper web after passing a press section by adhering the web to a steam heated cylinder.

In the dryer section of paper machine, the paper sheet travels around large-diameter heated cylinders, remaining water is removed by evaporation.

The screen is characterized by smooth surface and seam, stable structure gives more resistance to distortion, good runnability reduces sheet flutter and breaks, contamination resistant and easy clean for good using life and maintains even permeability and other advantages.

Woven dryer screen can be divided into 3-shed, 4-shed & 8-shed. Made from high grade flat monofilament and round monofilament polyester yarns. Used in the dryer section of paper machine to produce newprint paper, writing paper, carbonless paper, copper print, etc.

Seam Type: Insert, Pin, Ping ring, Spiral ring join.

Technical parameters

FABRIC CODE	WEFT DENSITY	WARP DENSITY	WARP DIAMETER	WEFT DIAMETER	AIR PERMEABILITY
HT22604-1	23.0~24.0	14.5~15.5	0.815 X 0.31	0.40, 0.60	90CFM
HT22604-2	23.0~24.0	13.0~14.0	0.815 X 0.31	0.40, 0.60	150CFM
HT22604-3	23.0~24.0	11.5~12.5	0.815 X 0.31	0.40, 0.60	250CFM
HT18504	18.5~19.5	15.5~16.5	0.58 X 0.38	0.60	150CFM
HT18504-2	18.5~19.5	10.5~11.5	0.58 X 0.38	0.70	600CFM

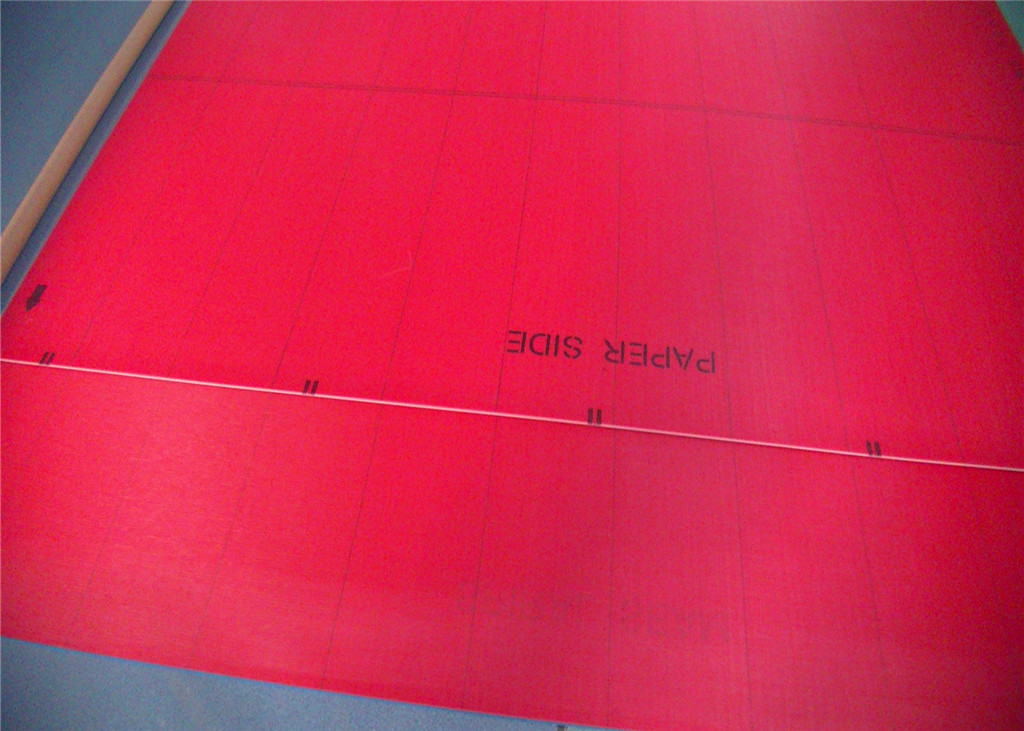

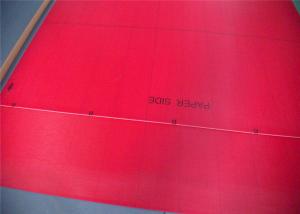

Product Pictures:
Customized Paper Machine Clothing Canvas Dryer Fabric Stable Structure
