200m/Min Cylinder Machine Toilet Paper Machine
1.Toilet Paper Machine Application:
Our Huatao Toilet Paper Machine can use waste paper (such as waste books, newspaper, used office paper, waste paper edge from printing factory ), virgin pulp as material to make high-quality toilet paper, the finished product can be small tissue roll, napkin tissue, facial tissue, kitchen towel.
2.Toilet Paper Machine Supporting parameter
- Control voltage: 220/24V
- Water pressure: 0.3Mpa;
- AC voltage: 380V；50Hz
- Working pressure: 0.2Mpa
- Compressed air pressure: 0.8Mpa;
- Working pressure: 0.5Mpa
- Steam pressure: 0.6Mpa;
- Working pressure:0.3Mpa
- Vacuum suction tank: 20-40Kpa
- Water requirement: pure color, remove impurities, PH value 6.8
3.Toilet Paper Machine Crafts Parameters:
4.Toilet Paper Machine Main Technical Parameters:
Track gauge: 4600mm
Wrinkling rate: 15-30℅
Driveway: Y-type AC motor drive division, section drive
Control way: frequency conversion
Power:MG cylinder motor: 95kw, Roll-cylinder motor: 7.5kw , Total:102.5Kw
Arrangement: single-layer, the left, and right-hand arrangement
Paperweight: 18-30g/m2
Net width of paper:3900mm
Designed speed: 230m/min
Working speed: 150-200m/min
Nominal capacity: 10T/D
| Item / PM type | 1575 | 1880 | 2400 | 2900 | 3500 | 3900 |
| Design Speed (m/min) | 250 | 250 | 250 | 250 | 250 | 250 |
| Working Speed (m/min) | 160-230 | 160-230 | 160-230 | 160-230 | 160-230 | 160-230 |
| GSM Range (g/m2) | 13-30 | 13-30 | 13-30 | 13-30 | 13-30 | 13-30 |
| Capacity | 4-6 | 5-8 | 7-10 | 8-12 | 10-15 | 11-18 |
| The diameter of Dryer (mm) | Φ2500-3000 | Φ2500-3000 | Φ2500-3000 | Φ2500-3000 | Φ2500-3000 | Φ2500-3000 |
| Motor (kw) | 37-45 | 45-55 | 55-75 | 75-90 | 90-110 | 90-110 |
| Gauge(mm) | 2400 | 2800 | 3400 | 3900 | 4500 | 4800 |
5. Toilet Paper Machine Specifications
output paper: toilet paper, tissue paper, paper napkin
raw material: waste paper, virgin pulp
capacity: 5-50 ton per day
net paper width:1575-3600mm
output paper weight: 13-40g/m2
6. Toilet Paper Machine Flow chart
Ⅰ. Waste paper
Ⅱ. Chain conveyor
Ⅲ. Hydrapulper
Ⅳ. High-density cleaner
Ⅴ. Reject separator
Ⅵ. Pulp pump
Ⅶ. Fiber separator machine
Ⅷ. Pressure screen
Ⅸ. Vibrating screen low density cleaner
Ⅹ. Toilet paper machine

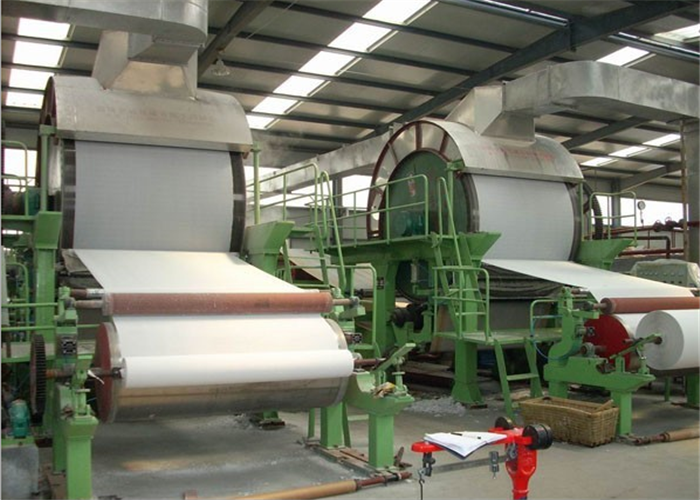

7. Toilet Paper Machine Photos
Our Services
1. Technical consultation
2. Detailed design of the factory
3. Installing and testing the whole production line
4. Training engineers and workers
5. Supplying spare part for a long time
