Mine Classification Polyurethane Hydrocyclone

Mine Classification Polyurethane Cyclone

Mine Classification Polyurethane Cyclone Product Profile

Hydrocyclone is a kind of equipment that classifies pulp by centrifugal force. It is widely used in the classification, separation, concentration, desanding, desliming of slurry materials. It's is one of the important equipment for removing sand in the oil field, classification in the mining plant, water process in coal plant.

Mine Classification Polyurethane Cyclone Application

​

Hydrocyclones are used for grading, desliming and concentration. For pulverized coal and dense metal minerals, it can sometimes be used for sorting. When referring to heavy media, the cyclone can be used for pre-selection or rough selection of ore.

Mine Classification Polyurethane Cyclone Advantage

1. Low price, high classification efficiency

2. Simple structure, no moving parts

3. Large capacity, small floor area, low infrastructure cost

4. Fine classifying granularity

Mine Classification Polyurethane Cyclone Principle

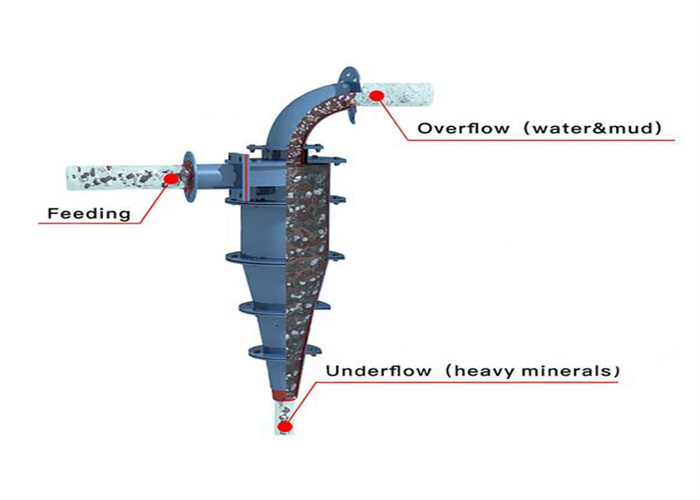

The working principle of our hydrocyclone is centrifugal sedimentation, when two phases (or three phases) mixed liquid is fed into hydrocyclone by a certain pressure liquid and produces strong three-dimensional-elliptic rotational movement. Due to the different density of particles, the centrifugal force, the centripetal buoyancy and drag force is different. So most coarse particles (or heavy phase) are discharged from cyclone underflow outlet, and the fine particles (or light phase) from the overflow tube, so as to achieve separation.

Working modes of our hydrocyclone includes classification, condensation, dehydration, desliming, sand removing sand, washing, ultrafine classification etc.

Mining Separator Hydrocyclone Specification

mine classification polyurethane hydrocyclone

polyurethane hydrocyclone

mine classification polyurethane cyclone

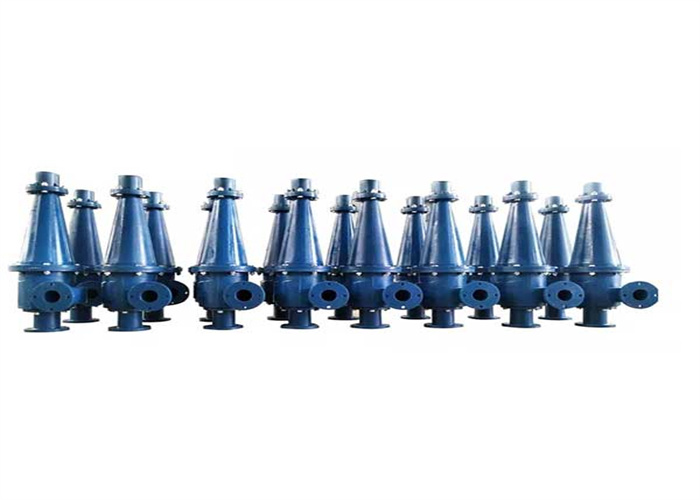

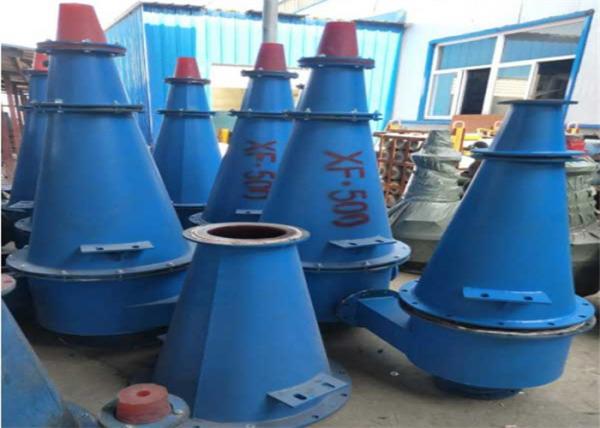

Mine Classification Polyurethane Hydrocyclone Images
